Ecosoft 20L Water Softener

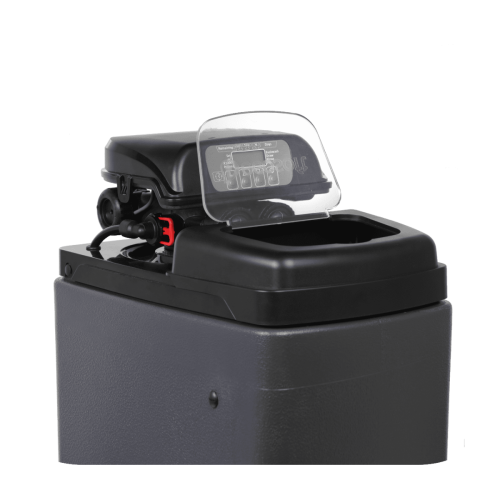

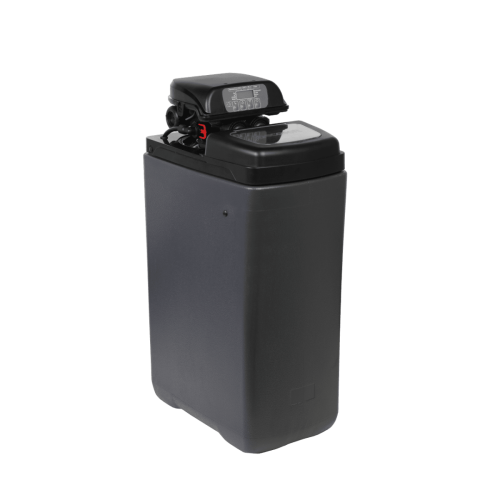

Ecosoft 20L Water Softener
Couldn't load pickup availability
Please allow up to 3 working days for the delivery of this product via curbside pallet delivery.
Ultra-compact dimensions and Clack® DV valve make these softeners both space-saving and reliable. The compact design of the smallest model is combined with high flow and softening capacity due to the unique 10×13 mineral tank size, it fits in most kitchen cabinets.
Ecosoft Softener is a metered, cabinet style residential water softener. The system utilizes a 20 Litre resin tank for 5000 Litres / day capacity (based on 250 ppm hardness) and is designed to be used at a point of entry to flats/houses or before industrial grade equipment such as dishwashers, washing machines, boilers, etc.

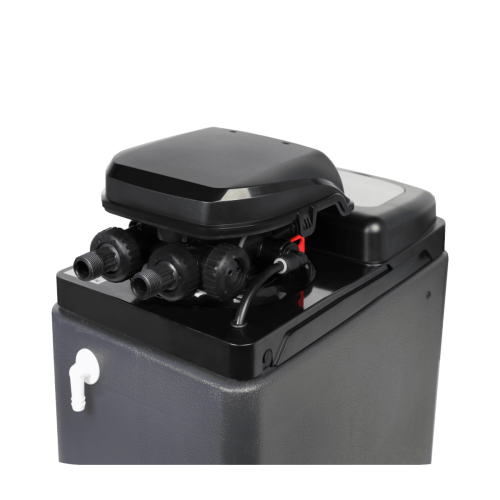

The softener comes with Clack 1” Metered Softener Valve.
The system works in both metered and time based modes for minimal salt consumption, waste generation, and downtime. The system also has smart capabilities, all operations except loading the system with salt are fully automatic. The proprietary software and digital screen allows for easy user interface with the system while maintaining very high water softening efficiency and system uptime.
Ecosoft Water Softener produces the softest water possible at the highest efficiency. The elegantly designed system is one of the most technologically advanced water softening systems.
Delivery notice: please allow up to three business days for delivery via curbside pallet delivery service. It is highly recommended due to the size and weight of the product for two persons to be available for the curbside delivery.
- Fully automatic system, no manual intervention required to operate
- Smart capabilities, decides when to regenerate for maximum efficiency
- 1'' Metered Clack Valve
Benefits of using Water Softener
- Hair and skin will feel smooth and silky after your bath or shower
- Eliminate issues with hard scale sticking to your taps, shower screen, and kitchen
- Cleaning will become much easier
- Increase the lifetime of appliances
- Stylish and ergonomic, designed specifically for modern living
- Luxurious, giving silky smooth water for the whole house, large
- Reducing your needs for detergents and other cleaning products
You can download the product manual in the file section below
| Model | Ecosoft 20L Softener Pink |
|---|---|
| In Depth | Specifications: Components: Pre-adjusted US-made Clack® DV with mixing valve Cabinet enclosure Pressure tank Brine well with safety float valve Ion-exchange resin DOWEX™ HCR-S/S Technical specifications Operating Flow rate — 1.8 m³/h (30 LPM) Quantity of media — 20 L Volume capacity* — 5 m³ (5000L) for hardness at 5 meq/L (250 mg/L CaCO₃) Usage of salt per regeneration** — 1.6-2 kg Usage of water per regeneration — 0.12 m³ (120L) Duration of regeneration — 80–110 minutes Pressure drop in service mode — 0.5 bar Inlet pressure — 2–6 bar Electrical requirements — 230 V, 50 Hz Power consumption — 30 W Inlet/outlet pipe connections — 3/4’’ Influent water parameters Hardness — 15 meq/L (750 mg/L CaCO₃) Iron — 0.2 mg/L Manganese — 0.05 mg/L Required level of purification of sediment particles — 100 μm Initial water temperature — +4…+30 °С Operational Specifications @ 250 PPM hardness & 5000Litres / Day consumption: • Regeneration cycle once every 5-6 days (based on a 4 people household using 160 litres/person in an area where the water is 250 ppm hard) |
| Filter Parameter |
Limescale https://www.osmiowater.co.uk/mwdownloads/download/link/id/147 https://www.osmiowater.co.uk/mwdownloads/download/link/id/137
|
